10 Ton Trolley Wire Electric Locomotive

10 Ton Trolley Wire Electric Locomotive have 2 type voltage, 250V or 550V, the traction force is 10 times of its self-weight, thats 100 Ton ores. The 10 ton trolley wire locomotive is usually applied in long distance railway transporation. The control

CJY10 Ton Underground Mining Trolley Locomotive

10 Ton Trolley Wire Electric Locomotive have 2 type voltage, 250V or 550V, the traction force is 10 times of its self-weight, thats 100 Ton ores.
The 10 ton trolley wire locomotive is usually applied in long distance railway transporation.
The controller could be choose as resistance, IGBT or Ac frequency.
The track gauge could be choose with 600, 762 or 900, also could as requirements.
The brake method have mechinical and air brake.
Operation video:

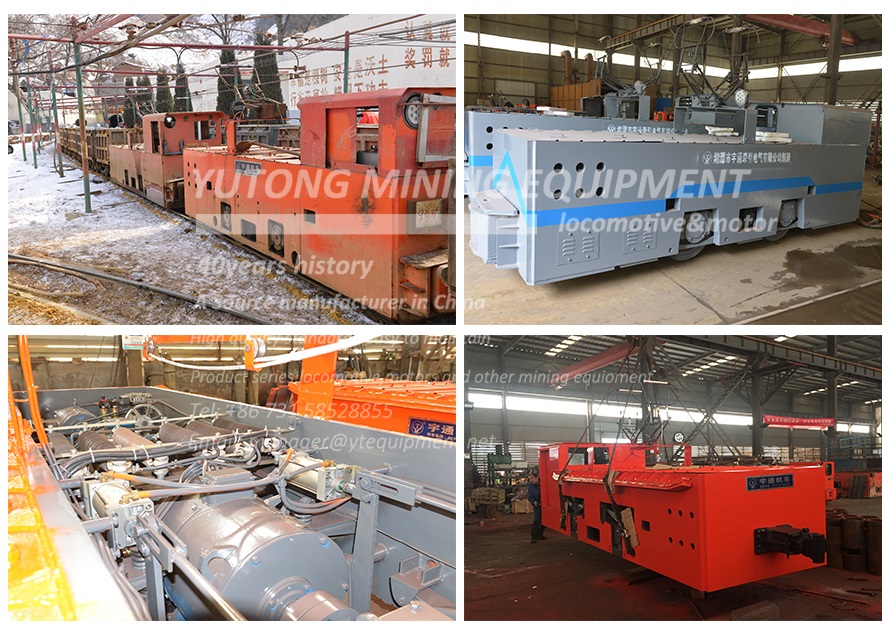

Shipment and one site details

14t trolley locomotive 1.jpg

shipment and site 17.jpg

shipment and site 11.jpg

shipment and site 15.jpg

shipment and site 2.jpg





10ton Trolley Locomotive

Model

CJY10/6、7、9G(B)(P)

Adhesive / total weight (t)

10t

Track gauge (mm)

600、762 or 900mm

Traction

13.05kN

18.93kN

Max. Traction (KN)

24.5kN

Speed

11km/h

Direct Voltage

250V

550V

motor power

24Kw×2

30kW×2

Dimensions

Length

4550mm

Width

1050、1212 or 1350mm

Height

1600mm

Wheel base

1100、1220mm

Wheel Diameter

680mm

Operational height of current-controller

1800~2200mm、2000~2400mm

Min Curve radius (m)

7、10m

Controller

Resistance or IGBT

Braking method

Mechanical Brake
