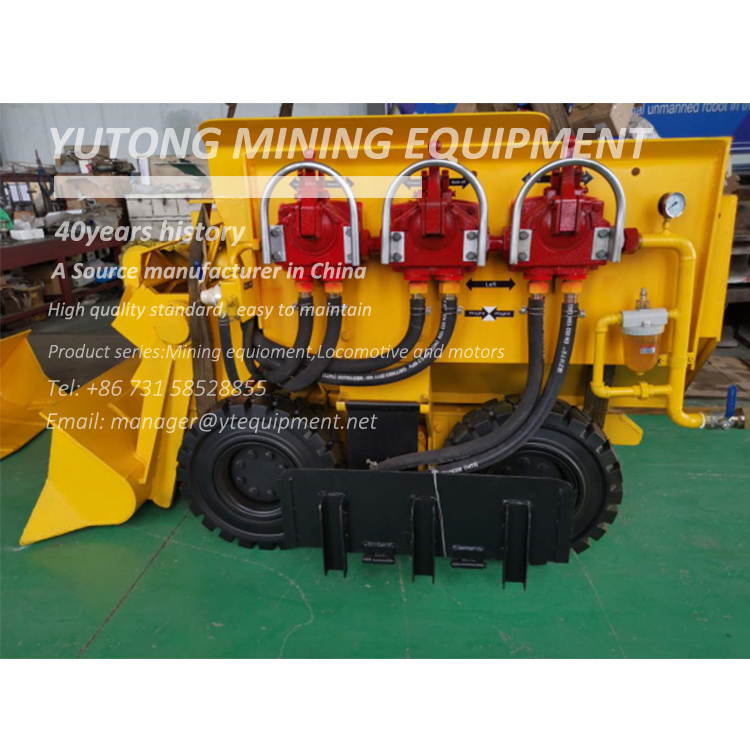

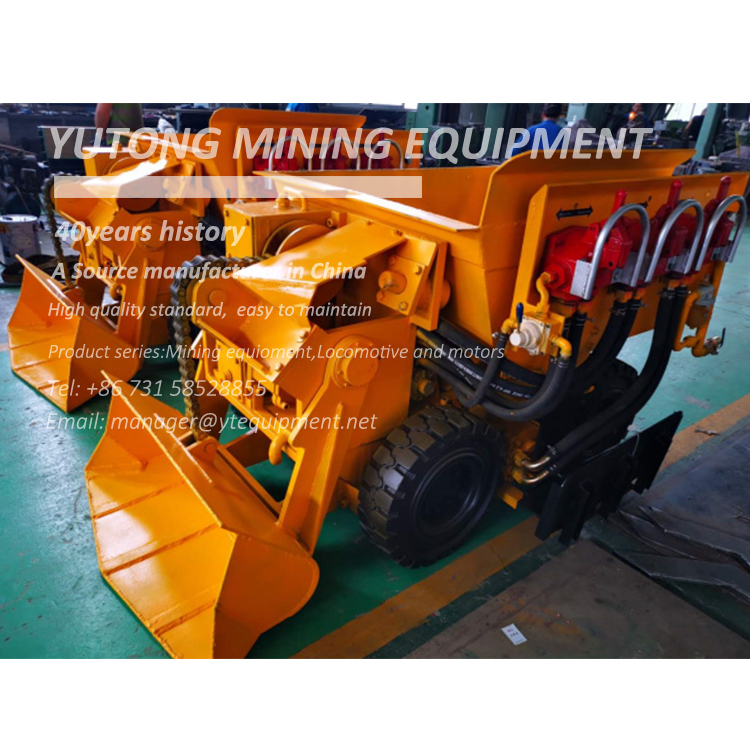

Wheel type pneumatic rock pit loader machine/Pneumatic Shovel

This Pneumatic Shovel is wheel typeIt is composed of main components such as walking system machine body lifting bucket system bucket system aerodynamic system and so on. This Pneumatic rock pit loader is the update one of the rail type it has

CJY10 Ton Underground Mining Trolley Locomotive
This Pneumatic Shovel is wheel type It is composed of main components such as walking system machine body lifting bucket system bucket system aerodynamic system and so on.
This Pneumatic rock pit loader is the update one of the rail type it has the wagons itself and more easy to loading and unloading ores.

Below is the video show you how it works.




Hot Tags:
Working pressure 4.21-7.03kg/cm2 4.21-7.03kg/cm2
Bucket Volume 0.15m3 0.2m3
Wagons Volum 0.8m3 1m3
Running motor HP 9kw*2 9kw*2
Rising motor HP 12kw 12kw
 Unloading height ≤1900mm ≤1900mm
Loading Height ≤1750 ≤2300
Dimensions 2300*1490*1380 2300*1490*1380
Weight 3100kg 3100kg
