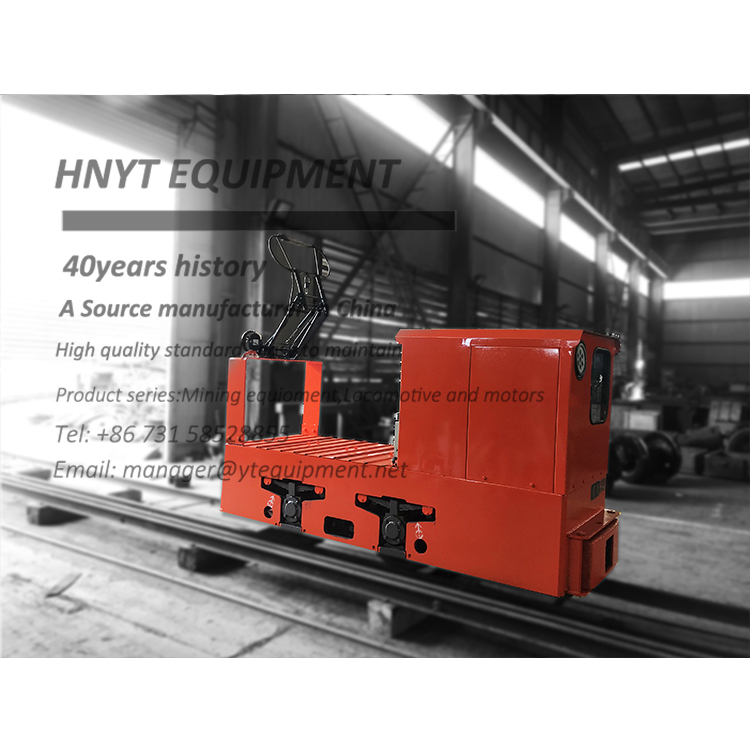

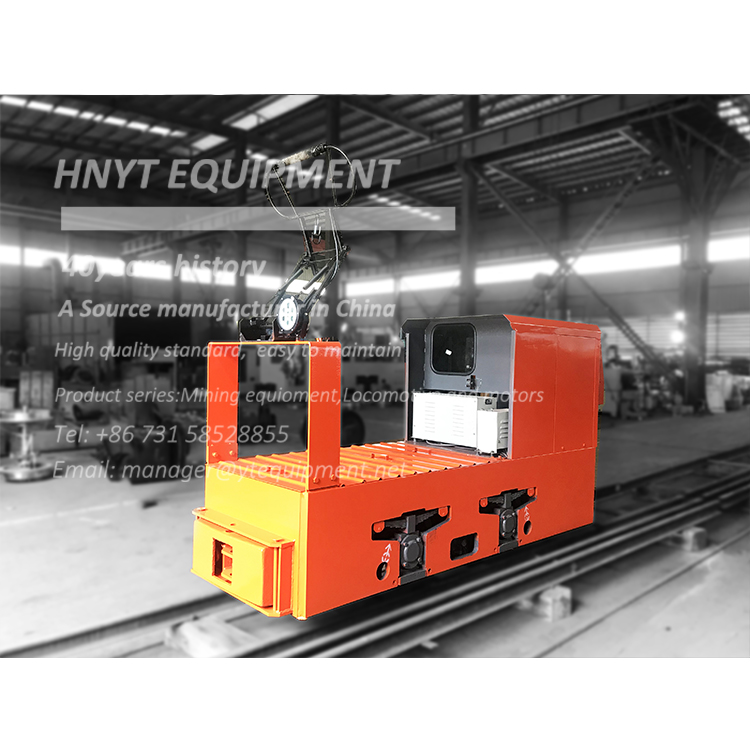

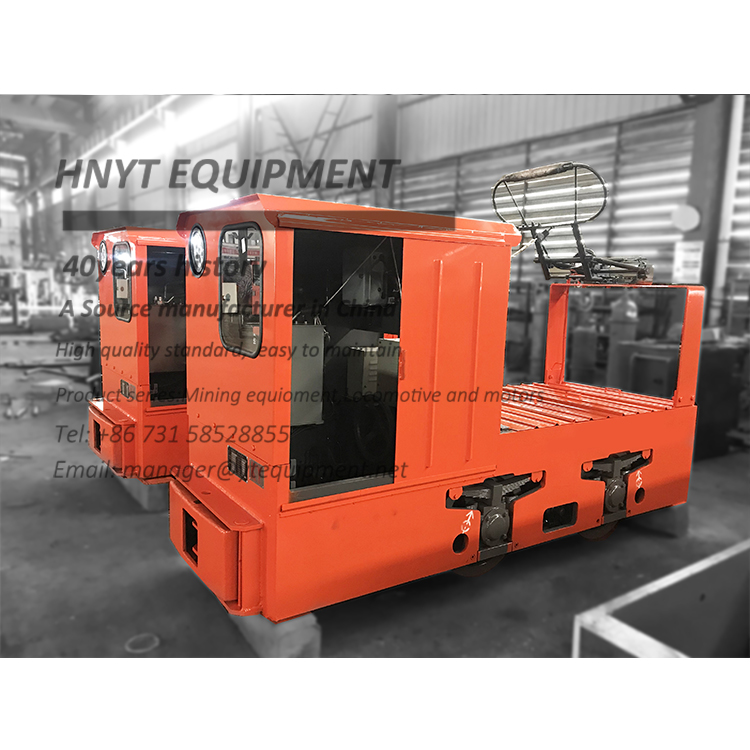

CJY 3.5 Ton Trolley Locomotive is special designed for the mining clients which located in Albania the traction force could up to 35 Ton in a 3 slope. It is usually transporating in ground or underground be given the electric that transformed by th
 |
Model | CJY3/6、7、9G(B) | |
| Weight | 3 ton | ||
| Track gauge | 600、762 or 900mm | ||
| Traction force | 5.74kN | ||
| Max traction force | 7.36kN | ||
| Speed | 7.5km/h | ||
| Dc voltage | 250V | ||
| Motor power | 6.5kW×2/ 7.5kw*2 | ||
| Dimensions | Length | 2750mm | |
| Width | 940、1082 or 1220mm | ||
| Height | 1550mm | ||
| Wheelbase | 850 mm | ||
| Wheel diameter | Φ520 mm | ||
| working height of Pantograph | 1800~2000mm | ||
| Min turn radius | 6m | ||
| Control method | Resistance or IGBT | ||
| Brake method | Mechnical or hydraulic | ||
