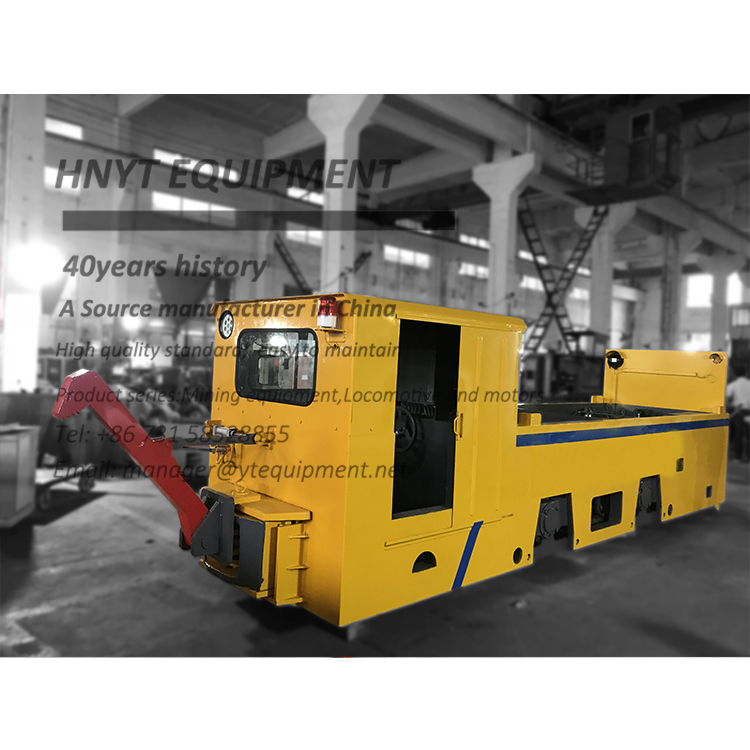

The 15 Ton Battery locomotive is specially desgined for constructions of large tunnel, sunways and water diversion works. It braking types include hand wheel switch braking,resistor braking and air braking. Main features includes, strong traction for
The 15 Ton Battery locomotive is specially desgined for constructions of large tunnel, sunways and water diversion works.
It braking types include hand wheel switch braking,resistor braking and air braking. Main features includes, strong traction force and carring capacity, high speed.
Locomotive Avantage Please Click: Locomotive Advantages.
Operation Video

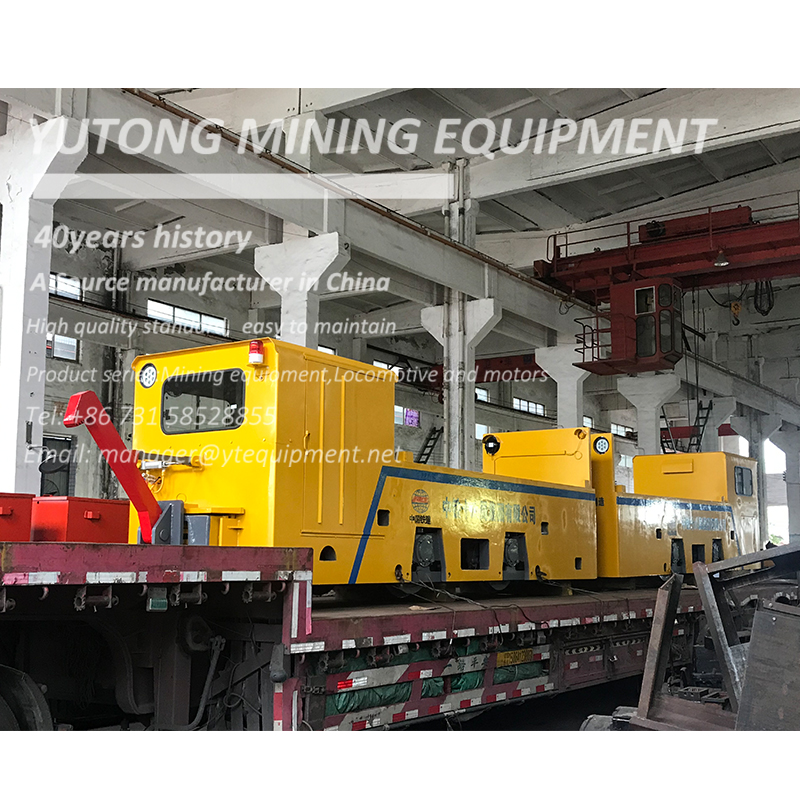

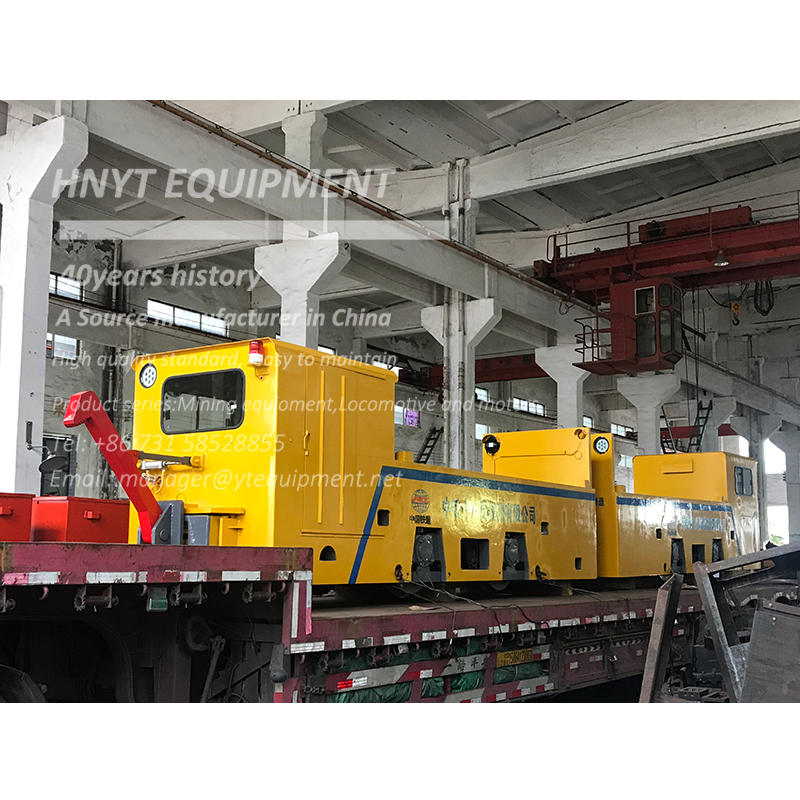

Shipment and one site details
| Type | CTY15/6、7、9G(B) | ||
| Total weight | 15t | ||
| Track gague | 600、762 or 900mm | ||
| Traction | 18.47kN | ||
| Max traction | 36.18kN | ||
| Speed | 9.6km/h | ||
| Battery device | Voltage | 256V | |
| Capacity | 560Ah | ||
| Motor power | 30Kw x 2 | ||
| Dimensions | Length | 5200mm | |
| Width | 1500mm | ||
| Height | 1920mm | ||
| Wheel base | 1400mm | ||
| Wheel diameter | Φ680mm | ||
| Min curve radius | 15m | ||
| Controlling way | IGBT OR AC Converter | ||
| Brake way | Mechnical or air brake | ||
